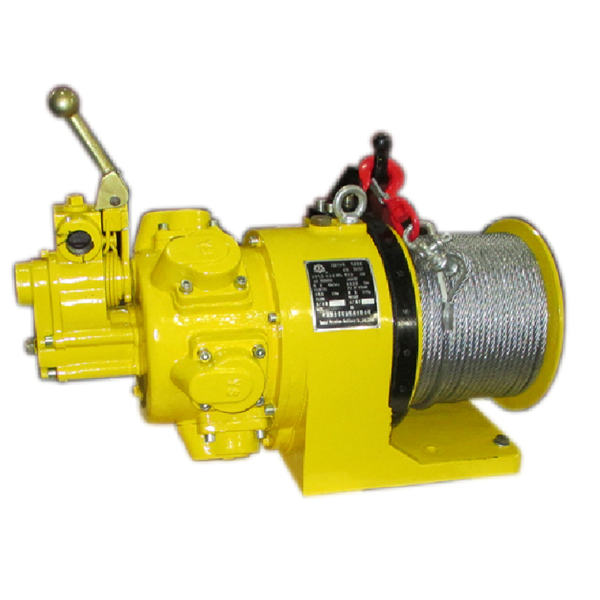

Description

Items Parameters Messurement Unit
Rated Working Pressure 0.6-0.7 MPa
Rated Full Force 10 KN
Rated Cable Speed 24 m/min


Piston Air Motor

 Model TMH4A —
Rated Power 4 KW
Air Consumption 130 L/s


Drum

 Diameter 175 mm
Width 198 mm
Wheel Rim Diameter 290 mm
Cable Diameter 10 mm
Cable Storage 50 m
Air Inlet Diameter 1 inch
Configuration ( Length* Width* Height) ) 722mm*342mm*530mm
Weight 160 KG
Brake Type Hand Brake
