Single phase electric chain hoist is fast lifting speed, easy operation and nice surface finish, with overload safety protection device and electrical machine hot protection setting.

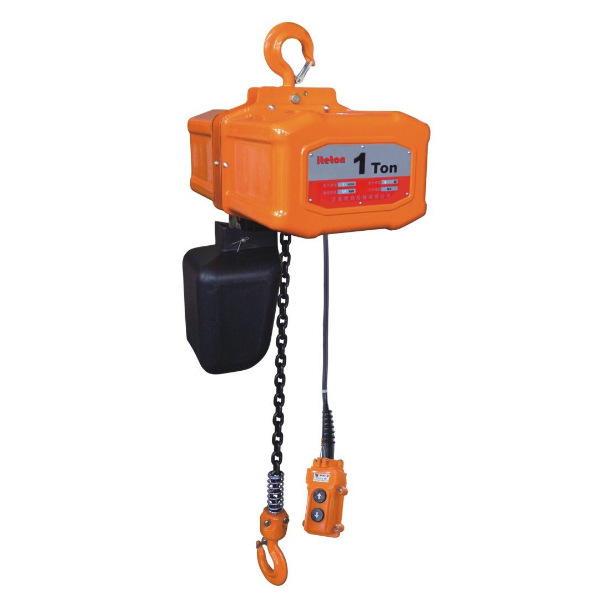

single phase electric chain hoist
Description
| Model | ITE-S025 | ITE-S05S | ITE-S05 | ITE-S10 | ITE-S20 | ITE-S30 |
| Capacity ton | 0.25 | 0.5 | 0.5 | 1 | 2 | 3 |
| Standard lifting height m | 3 | 3 | 3 | 3 | 3 | 3 |
| Lifting speed m/min | 8 | 4 | 7 | 6 | 3 | 2 |
| Lifting motor power kw | 0.45 | 0.45 | 0.8 | 1.2 | 1.2 | 1.2 |
| Power supply | 110v 220v/240v 50hz 1phase | |||||
| Control voltage | 24v | |||||
| Insulation grade | F | |||||
| Rating | 25% | |||||
| Spec.of load chain | Φ5*15 | Φ7.1*21 | ||||
| No. of load chain | 1 | 2 | 1 | 1 | 2 | 3 |
| Working duty | M3 | |||||
| Running test load ton | 0.31 | 0.625 | 0.625 | 1.25 | 2.5 | 3.75 |
| Length to cable m | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Net weight kg | 22 | 25 | 55 | 60 | 65 | 70 |
| Weight per extra lifting height kg | 0.55 | 1.1 | 1.1 | 1.1 | 2.2 | 3.3 |
| Hmin mm | 430 | 450 | 500 | 520 | 630 | 710 |
| Packing size cm | 44*30*30 | 44*30*30 | 55*45*38 | 55*45*38 | 55*45*38 | 55*45*38 |
