Description
| Items | Parameters | Messurement Unit | |
| Rated Working Pressure | 0.6-0.7 | MPa | |
| Rated Full Force | 5 | KN | |
| Rated Cable Speed | 48 | m/min | |
|

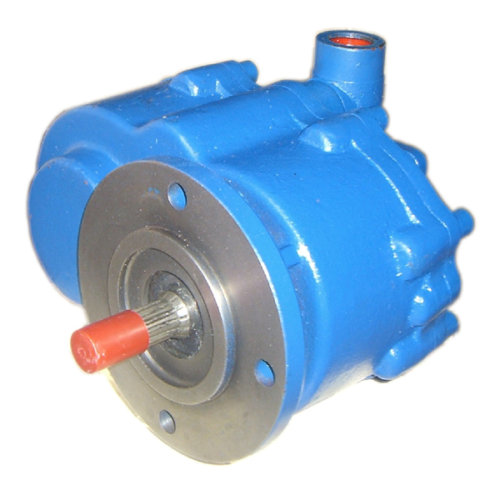

Piston Air Motor |
Model | TMH4A | — |
| Rated Power | 4 | KW | |
| Air Consumption | 130 | L/s | |
|
Drum |
Diameter | 175 | mm |
| Width | 198 | mm | |
| Wheel Rim Diameter | 290 | mm | |
| Cable Diameter | 8 | mm | |
| Cable Storage | 120 | m | |
| Air Inlet Diameter | 3/4 | inch | |
| Brake Type | Auto-brake | ||
| Configuration ( Length* Width* Height) ) | 857mm*342mm*440mm | ||
| Weight | 175 | KG | |
| Remote- control Distance | 6-15m | ||
