PDQ single steel plate clamp

///PDQ single steel plate clamp

PDQ single steel plate clamp

PDQ Single steel plate clamp

Lifting & transporting single or multi steel plates.

High quality carbon steel

Working with lifting beam

Friendly to sling rope.

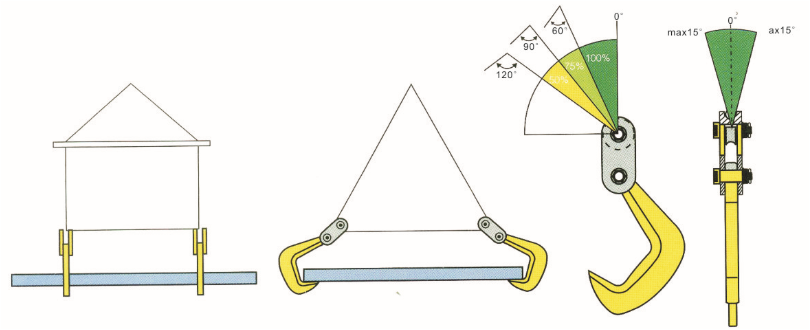

WLL is the max. load that the clamps work in pairs with a lifting angle of 60°

Working with 4 pieces. Automatic unloading

Description

Model WLL ton Jaw opening mm Weight kg
PDQ1 1 0-50 3
PDQ2 2 0-60 5
PDQ3.2 3.2 0-90 12
PDQ5 5 0-120 17
PDQ8 8 0-130 25
PDQ10 10 0-150 30
PDQ12 12 0-150 32
PDQ20 20 0-250 69
