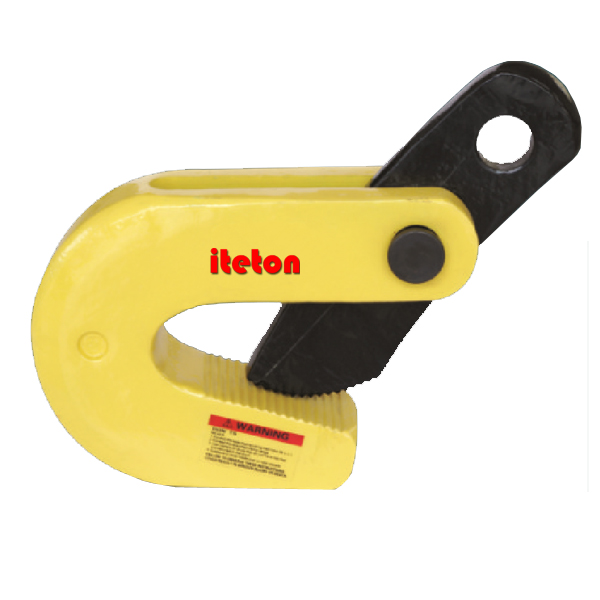

L model horizontal plate clamp

///L model horizontal plate clamp

L model horizontal plate clamp

L model horizontal plate clamp

Lifting and transporting steel plates, construction & profiled bar in horizontal position.

High quality carbon steel

WLL is the max. load that the clamps work in pairs with a lifting angle of 60°. Clamps can be used in pairs or multiples.

Die-forged alloy steel with optimally tempered for max. strength and durability.

Description

Model WLL ton Jaw opening mm Weight kg
L0.8 0.8 0-15 2
L1 1 0-20 4
L1.6 1.6 0-25 6.5
L2.5 2.5 0-30 11
L2.5B 2.5 25-50 11
L3.2 3.2 0-40 12.5
L3.2B 3.2 30-60 12.5
L5 5 0-50 19
L5B 5 50-80 20
L10 10 20-100 43
