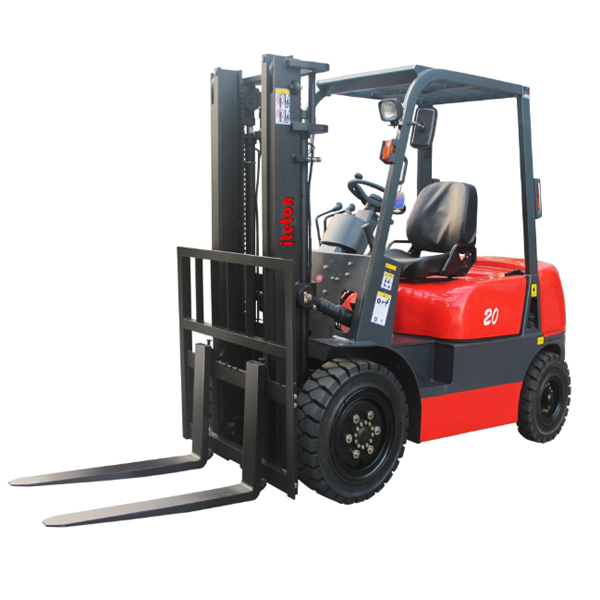

2 ton 2.5 ton diesel forklift

Features –DF 20/25 2 ton 2.5 ton diesel forklift

Power transmission system, overhead guard and truck frame all use dual suspension structure, which can weaken the vibration transferred from power system wheel, control lever and seat, thus making the operator feel more comfortable during operation

This forklift truck is designed with definition liquid crystal display device which not only provides convenience for operator to understand the working condition of truck, but also broadens the visual field of operator,.

This diesel forklift truck can be designed with two stage free lifting mast or three stage mast, luxurious and closed driving room, solid tire, side shifter, roll clamps, clamp holder and nonstandard forks etc. to meet your different needs.

Description
Reviews (0)

Description

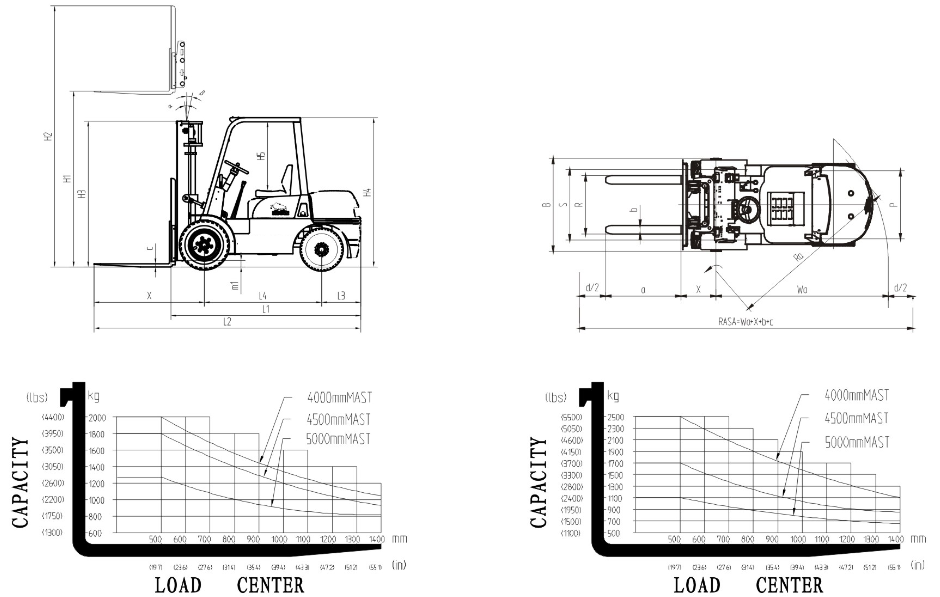

	1	Model			DF 20	DF25
General	2	Power type			Diesel	Diesel
	3	Rated capacity		kg	2000	2500
	4	Load centre		mm	500	500
Details	5	Lift height		mm	3000	3000
	6	Fork size	LxWxT	mm	1070x122x40	1070x122x40
	7	Mast tilt angle	F/R	Deg	6″/12″	6″/12″
	8	Front overhang( wheel center to fork face)		mm	480	480
	9	Ground clearance(bottom of mast)		mm	120	120
	10	Overall dimension	length of fork(with/without fork)	mm	3654/2570	3654/2570
	11		Overall width	mm	1160	1160
	12		Mast Lowered Height	mm	1195	1195
	13		Mast extended height(with backrest)	mm	4110	4110
	14		Overhead guard height	mm	2130	2130
	15	Turning radius(outside)		mm	2340	2340
	16	Min. intersection aisle		mm	2400	2400
Speed	17	Speed	Travel(full/empty load)	km/h	17/19	17/19
	18	Speed	Lifting(full/empty load)	mm/s	530/550	530/550
	19	Max. Gradeability		%	20	20
Chassis	20	Tire	Front		7.00-12-12PR	7.00-12-12PR
	21	Tire	Rear		6.00-9-10PR	6.00-9-10PR
	22	Wheelbase		mm	1600	1600
	23	Self weight		kg	3480	3680
Power & transmission	24	Battery	Voltage/capacity	V/Ah	12/120	12/120
	25	Engine	Model		C490BPG	C240
	26		Manufacturer		XinChang	ISUZU
	27		Rated output/r.p.m	Kw/r.p.m	40/2650	34.3/2500
	28		Rated torque/r.p.m	Nw/r.p.m	160/1800-2000	137.7/1800
	29		No.of cylinder		4	4
	30		bore x stroke	mm	90*105	86*102
	31		Displacement	cc	2670	2369
	32		Fuel tank capacity	L	80	60
	33	Transmission	Type		Machanical/hydraunic	Machanical/hydraunic
	34	Transmission	Stage FWD/RVS		1/1(2/2)/ 1/1	1/1(2/2)/ 1/1
	35	Operating pressure for attachment		Mpa	17.5	17.5
